Push/Pull

Lift a face into a solid.

Keyboard: P

How to use it

  1. Click a face and type how far to lift it, or drag it.
  2. A loop of lines has to be closed before it is a face you can push.
  3. Pull it back into itself to cut a shape away.

A face with a window in it

A rectangle drawn inside another leaves a ring: an outline with a window in it, the window belonging to the face inside. Pointing at the ring stipples the ring only, the reading in the top right is the area of the ring, and pushing it raises a wall with the opening lined - not a filled block.

What it looks like

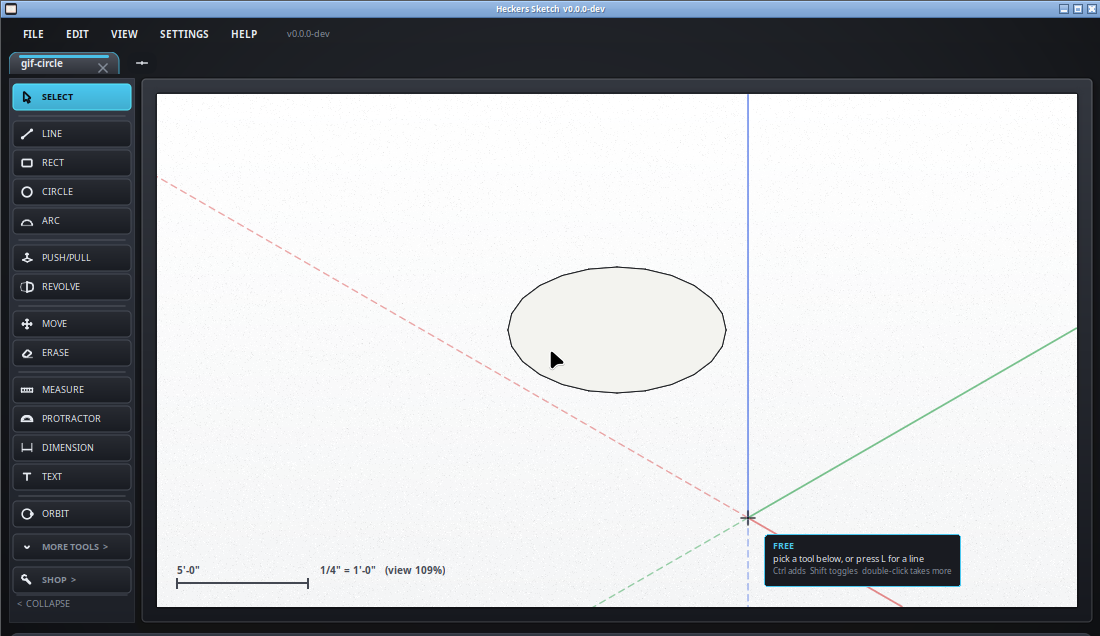

Picking the push/pull tool and raising a circle into a cylinder.
Pick the tool, click the face, move up, click again. That is all there is to it.

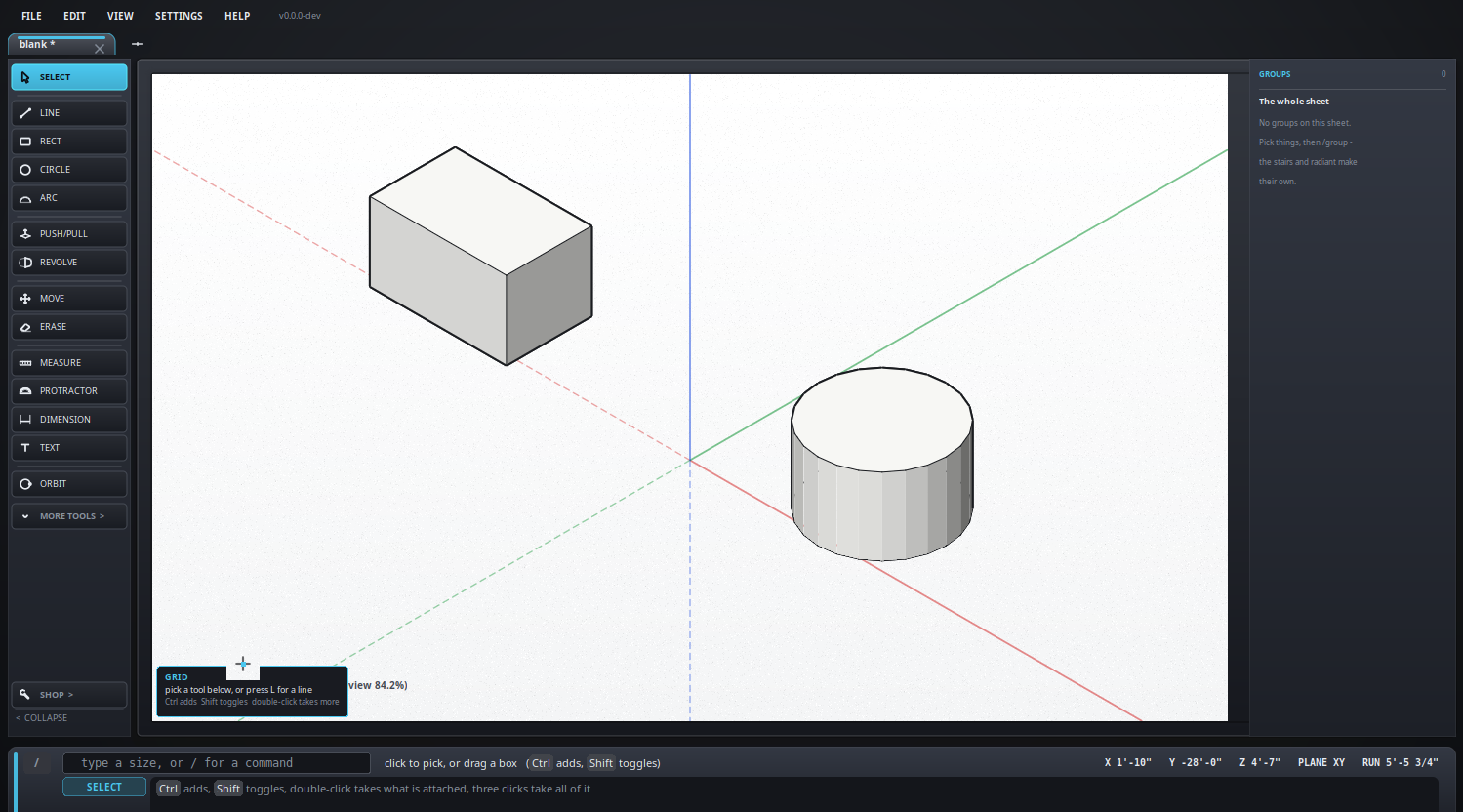

A box and a cylinder, each pushed up from a flat shape.
A square and a circle, each pushed straight up. The tool asks nothing about which it is - a face is a face - and the creases down the side of the round one are softened, which is what makes it read as a pipe rather than a barrel of staves.

The same again

Double-click another face and it is pushed as far as the last push went - a row of identical extrusions in a click each. The click that finishes a push is never the first half of one: click the far wall of a door you have just pushed through, then click there again by accident, and the wall is left alone.
